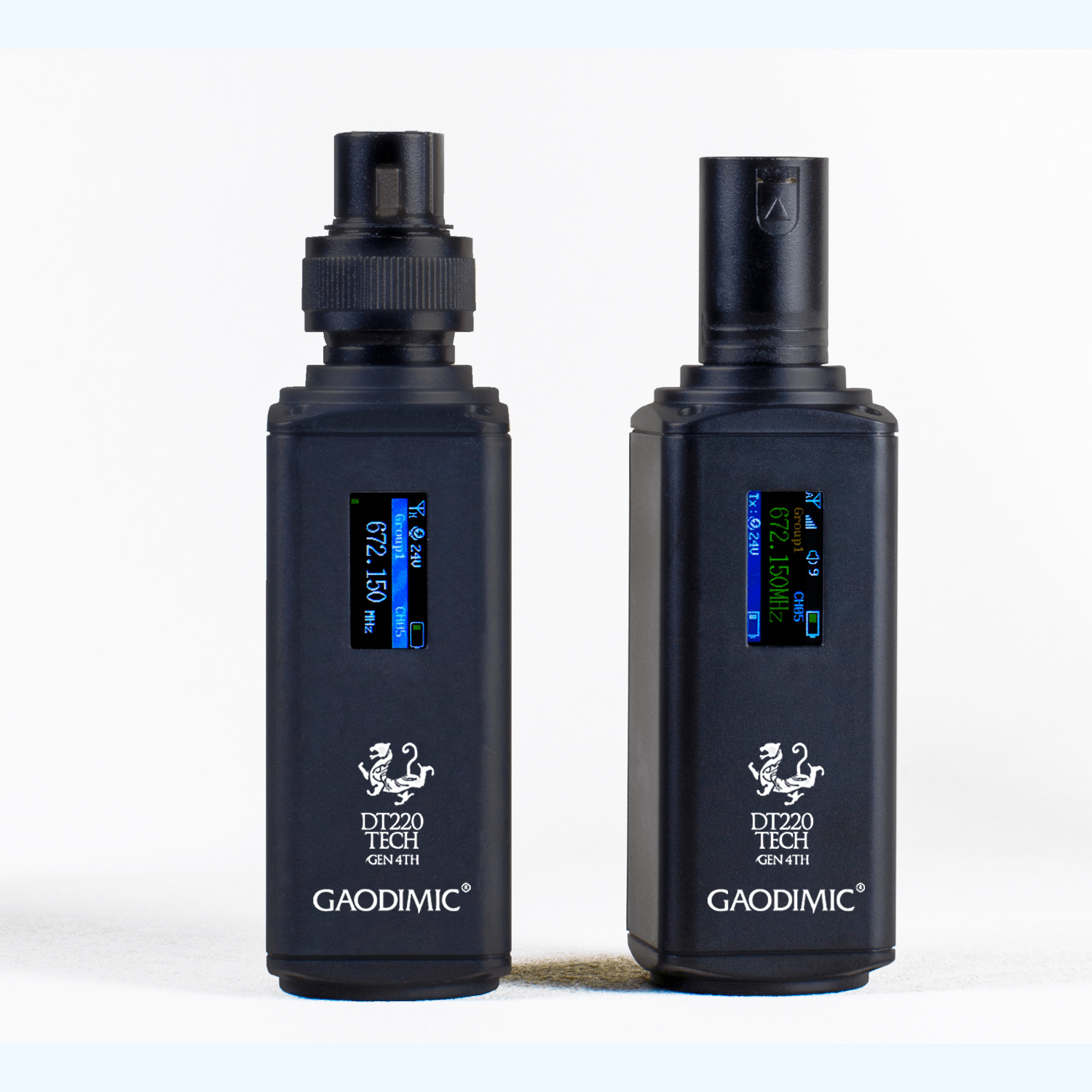

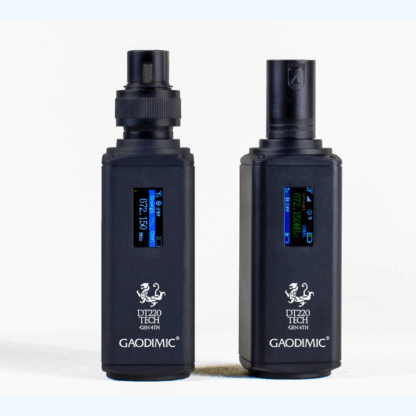

DT228G-P UHF Wireless System w/ 48V phantom

Description

Digital UHF Wireless System with 48V phantom power

• Communication mode UHF band radio digital communication
• Modulation Pi/4 DQPSK
• Band 510~590Mhz & 668 ~ 698MHz (Varies depending on region)
• RF Output  <18dBm
• RX Distance  >50M（related to signal absorption, reflection, interference, and selection）
• TX Distance 60~120M（related to Rx type and signal absorption, reflection, interference, and selection）
• Freq. Response  <5dB（20Hz~20KHz）
• S/N >123dB
• T.H.D ＜0.03%（@1KHz)
• Time Delay 4.17ms
• Antenna 500~600MHz (Built-in)
• RX Endurance   >16h(18650 Li Battery) / ＞8h(14500 Li Battery) / >6h(AABattery)
• TX Endurance    18650 Li-Battery ＞10h(@48V) / ＞14h(@24V) /＞18h;  AABattery：＞3h(@48V)/ ＞5h(@24V) /＞6h

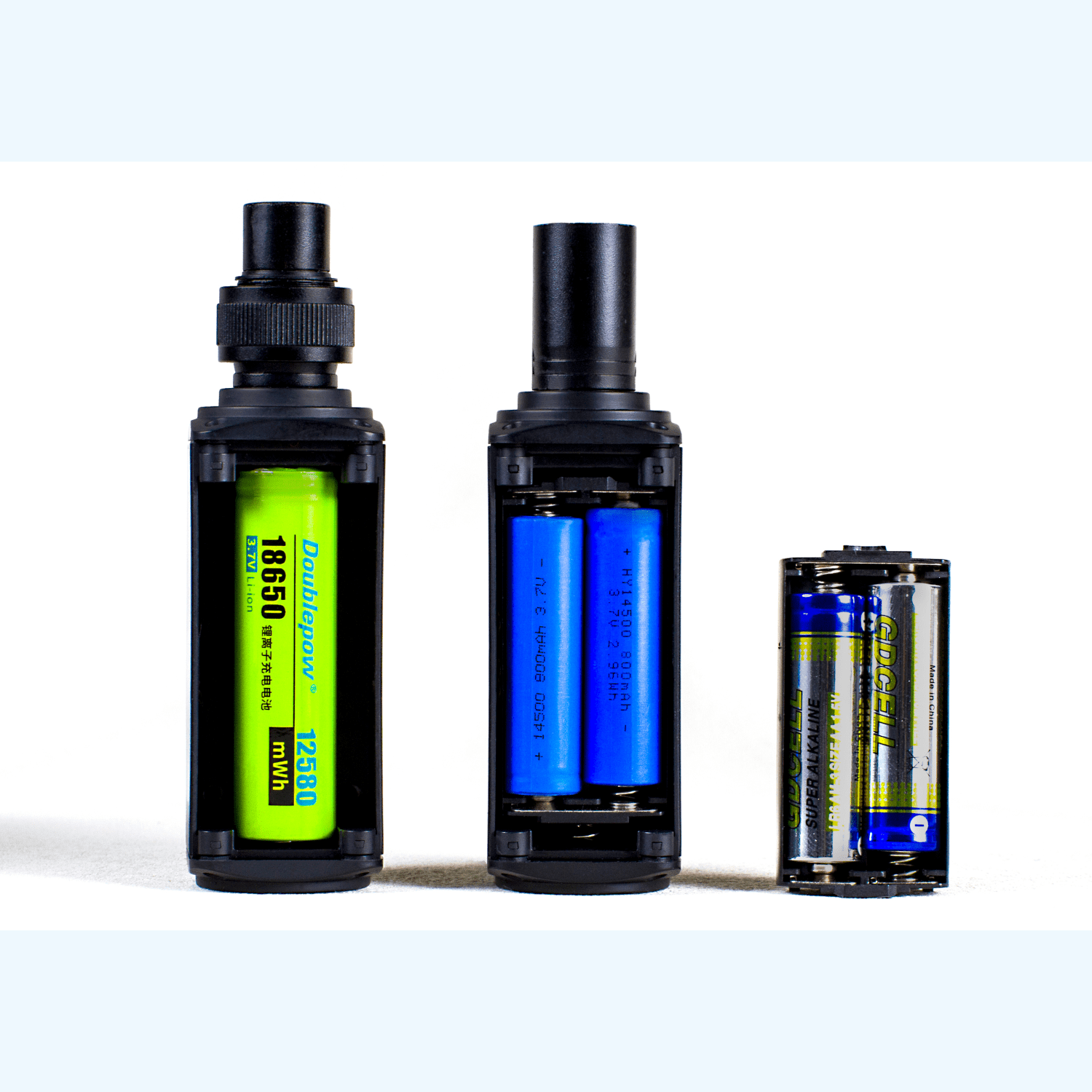

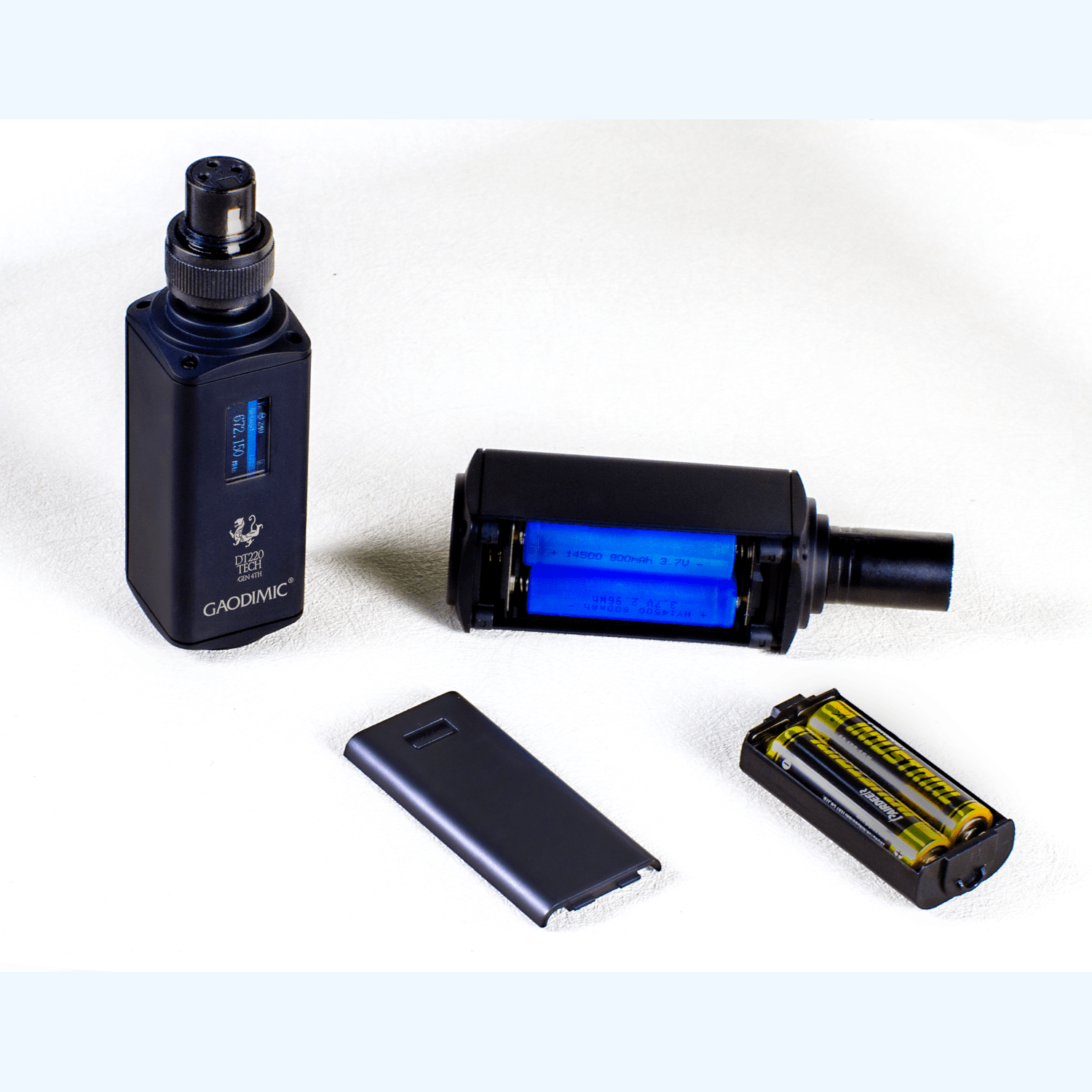

• Power Supply  18650Li-Battery x1 / 14500Li-Battery x2 / AA Battery x2 (Hybrid Power Supply)
• RX Weight  75g (Without Battery)
• TX Weight  88g (Without Battery)
• Size 124mm*34mm*34mm
