Description

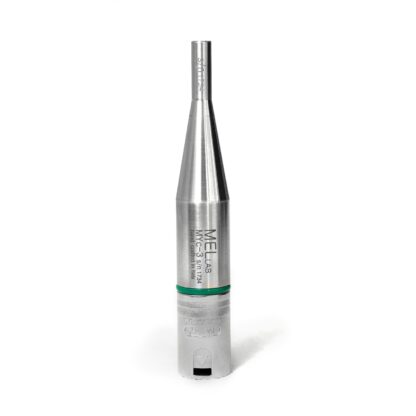

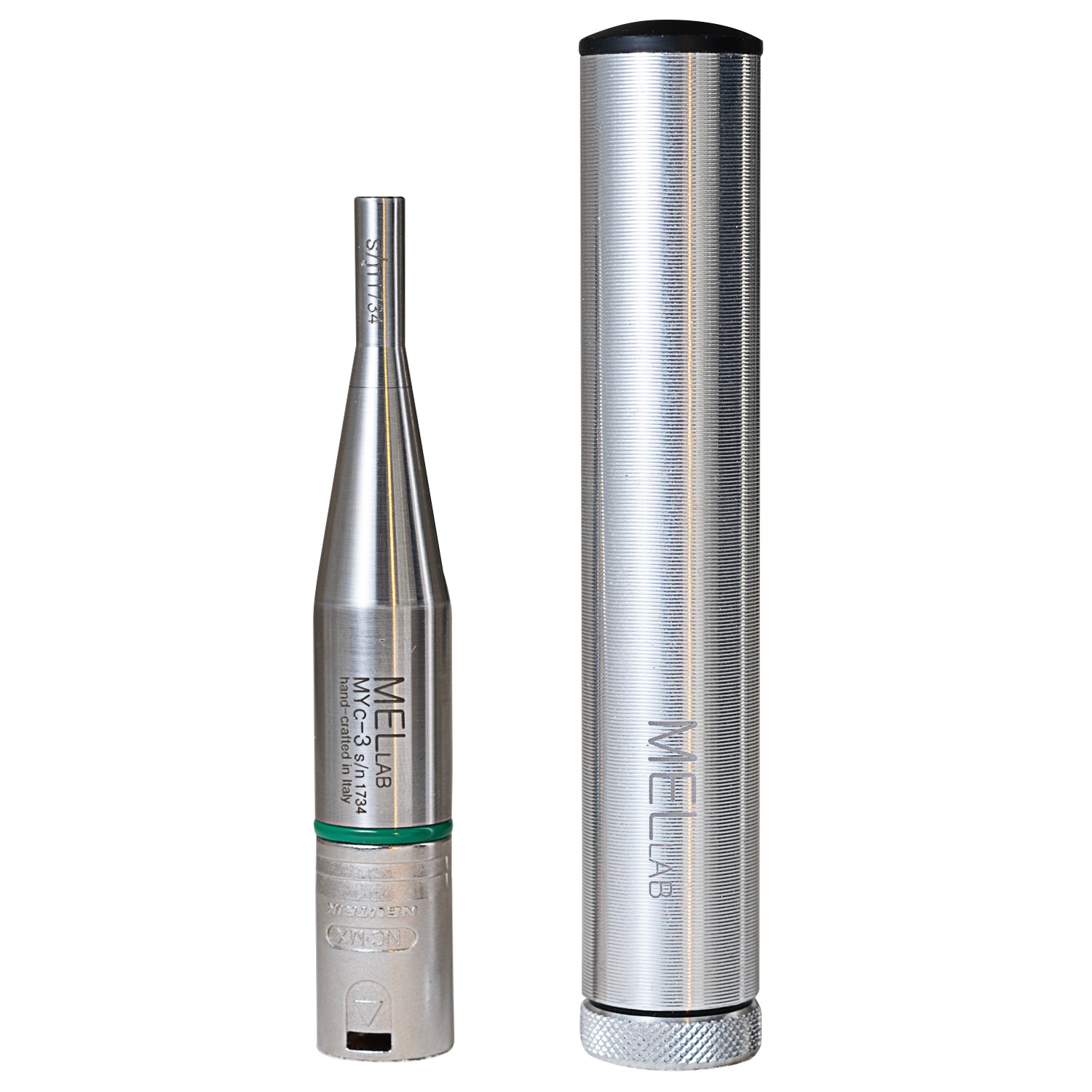

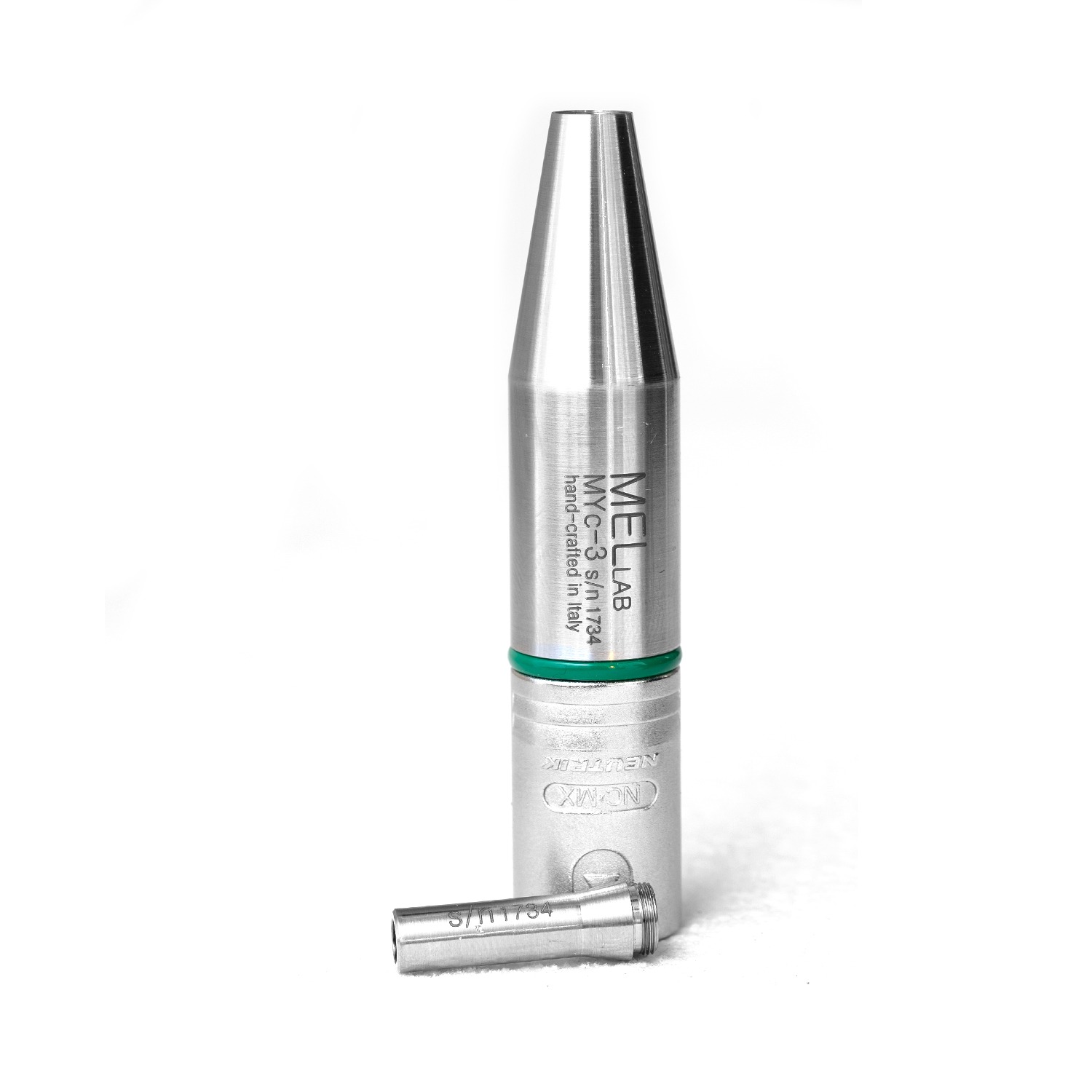

The Mellab MYc-3 is a professional measurement microphone designed for accurate acoustic measurement and sound system analysis. It is an omni-directional, pre-polarized condenser microphone with free-field frequency response and stable sensitivity.
This measurement microphone operates on standard 48 V phantom power and connects via a balanced XLR output. A positive pressure variation on the diaphragm produces a positive voltage at pin 2 of the XLR connector. This ensures correct polarity during acoustic measurement and system tuning.
The Mellab MYc-3 measurement microphone offers low self-noise and high maximum SPL capability. This makes it suitable for both low-level measurements and high sound pressure environments. Its compact size and low weight allow easy use in portable and fixed measurement setups.
Measurement microphone features
- Omni-directional condenser measurement microphone
- Free-field frequency response for acoustic measurement
- Low equivalent noise for precise measurements
- High maximum SPL capability
- 48 V phantom power operation
- Balanced low-impedance XLR output
Technical specifications
- Microphone type: Omni-directional, pre-polarized condenser
- Powering: 48 V phantom power (5 mA)
- Polarity: Positive pressure → positive voltage at XLR pin 2
- Frequency response (free field, 0°): ±1 dB: 10 Hz – 10 kHz, ±2 dB: 10 Hz – 22 kHz
- Sensitivity (@ 250 Hz): 15 mV/Pa (-36.5 dB re 1 V/Pa)
- Maximum SPL (THD < 3%): 140 dB SPL
- Equivalent noise level: < 23 dBA SPL (typical 22 dBA)
- Output impedance: 30 Ω balanced
- Temperature coefficient: +0.035 dB/°C
- Operating temperature: -10 °C to +50 °C
- Length: 116 mm
- Weight: 68 g
