Smaart SPL

Name: Smaart SPL
Brand: Rational Acoustics
SKU: 5053
Availability: InStock

EURO 134,00 – EURO 299,00

Smaart SPL offers the same complete SPL measurement toolset from Smaart v9 ST in a purpose-built standalone package. Smaart SPL provides a powerful solution for monitoring, metering, and logging SPL – with a format and price point more accessible to users who don’t require the real-time frequency and impulse response mode analysis capabilities of our flagship Smaart v9 ST software.

Significant: For accurate SPL measurements, this product requires a microphone calibrator, a suitable acoustic test & measurement microphone, and a microphone preamp / audio interface.

Each licence can be installed on two separate computers simultaneously. If you wish to install your licence on more machines at the same time, you can do so by purchasing “additional installs.” This option saves a little, as an additional install costs less than half the price of a full licence. This approach makes sense for larger companies that need to equip multiple machines with a SMAART licence.

In the dropdown menu below, you can select the licence type applicable to you.

License Type

Clear

Frequently Bought Together

MYc-3 kit w/case

Omni-directional pre-polarized* condenser microphone 48V

Add for EURO 336,00

AZ 8930 Microphone Calibrator

https://youtu.be/cqHGkYc9lso?feature=shared

Add for EURO 99,00

Adapter for 1/4″ microphones to 1/2″ calibrators

Add for EURO 28,00

audient evo 8

AUDIENT EVO 8 USB AUDIO INTERFACE

4 in / 4 out USB audio interface

We like this one because it allows gain tracking! - by following this link you ca read more about this function - https://support.rationalacoustics.com/support/solutions/articles/150000181075-what-is-gain-tracking-and-how-does-it-work-

Add for EURO 250,00

SKU: N/A Categories: in stock, Smaart Tag: SPL Logging Brand: Rational Acoustics

Description
Additional information

Description

Key Features

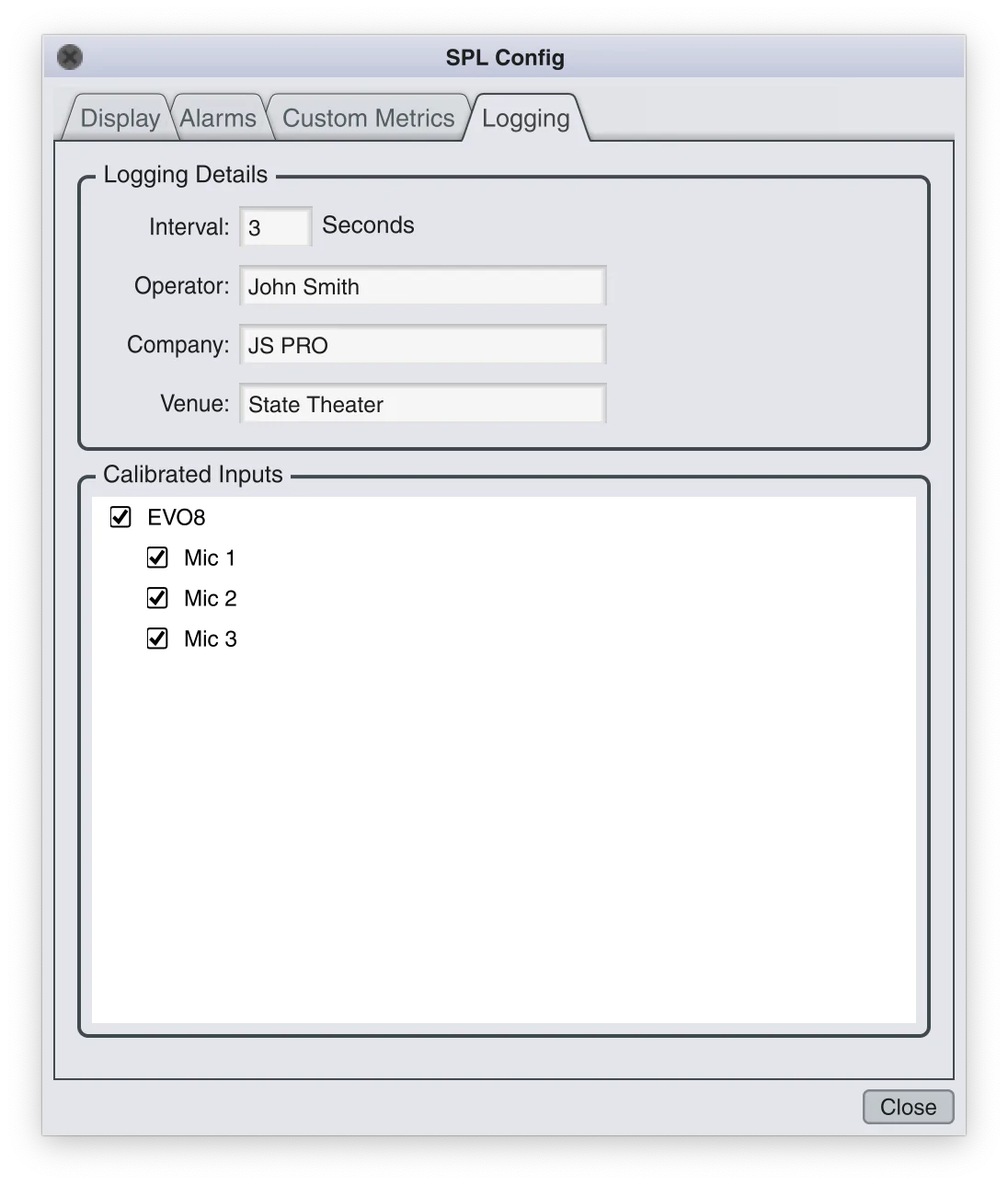

Comprehensive SPL monitoring and logging of any number of calibrated inputs simultaneously
SPL A, C, & unweighted Fast and Slow, Peak A, C, unweighted or Peak Octave banded frequency center
Leq A, C, unweighted or Octave banded frequency center with the user-definable period from 1 second to 24 hours
C-A bass ratio calculation
OSHA and NIOSH exposure calculation
L10, L50, and L90 calculation
10 EaZy integration for Class 1 or 2 compliant SPL Measurement
- Integrated Maximum Average Meter (MAM) display
- Support for multiple 10 EaZy systems connected at once

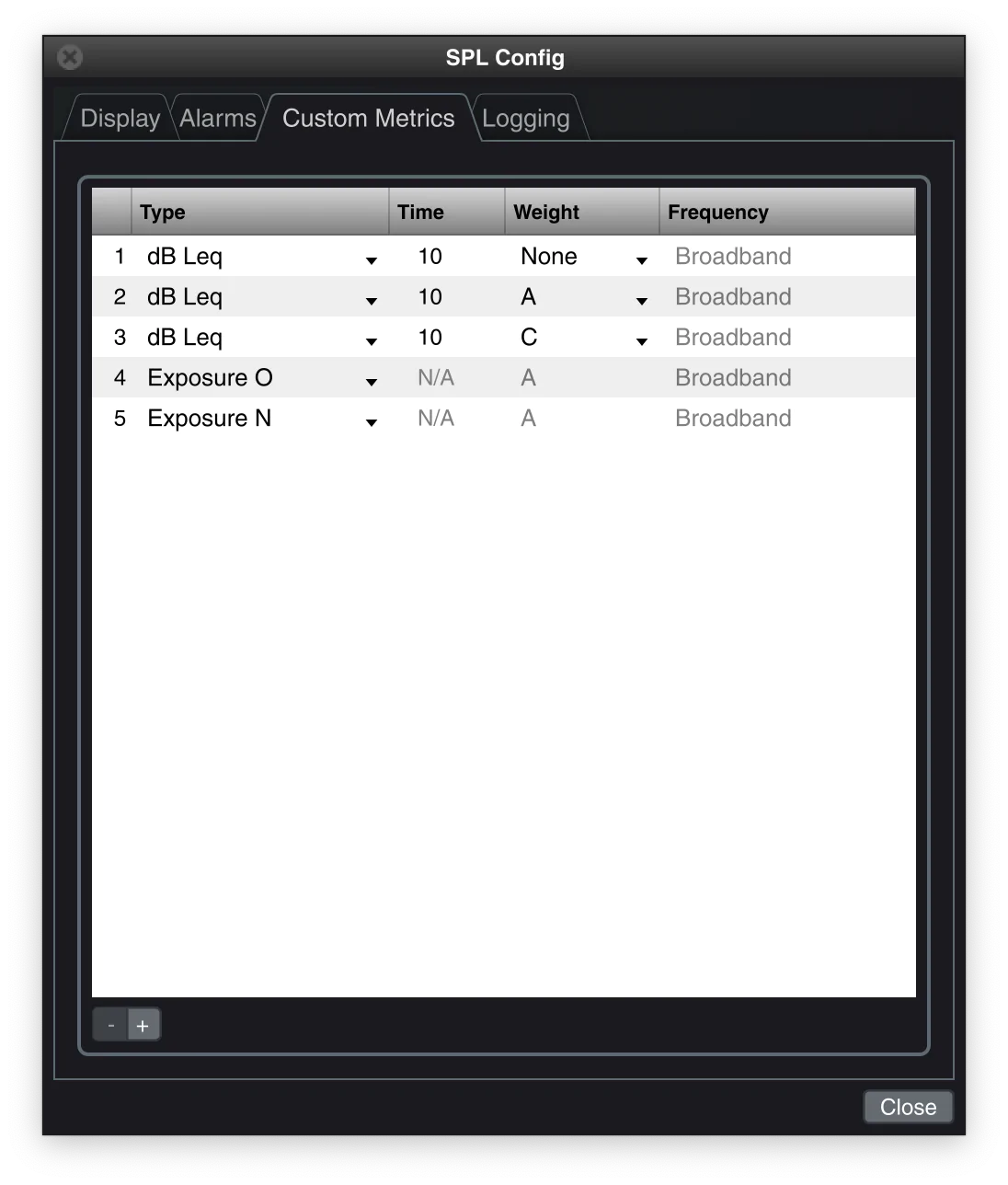

User-definable SPL grid window for viewing various SPL metrics simultaneously

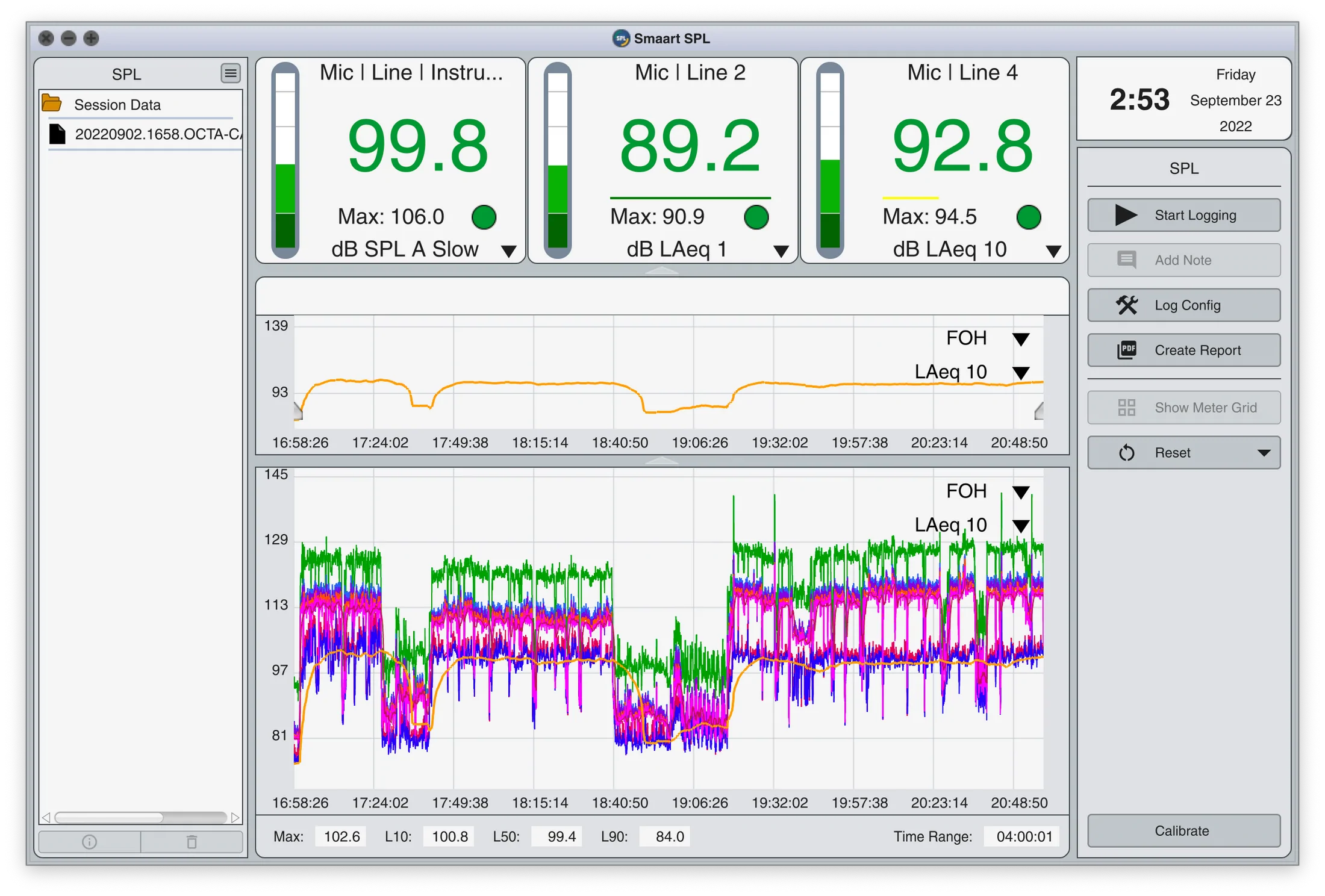

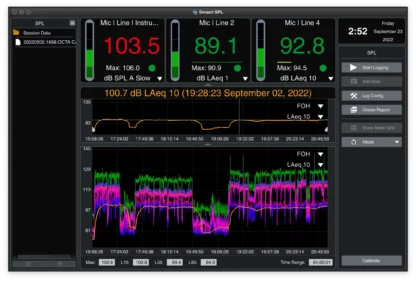

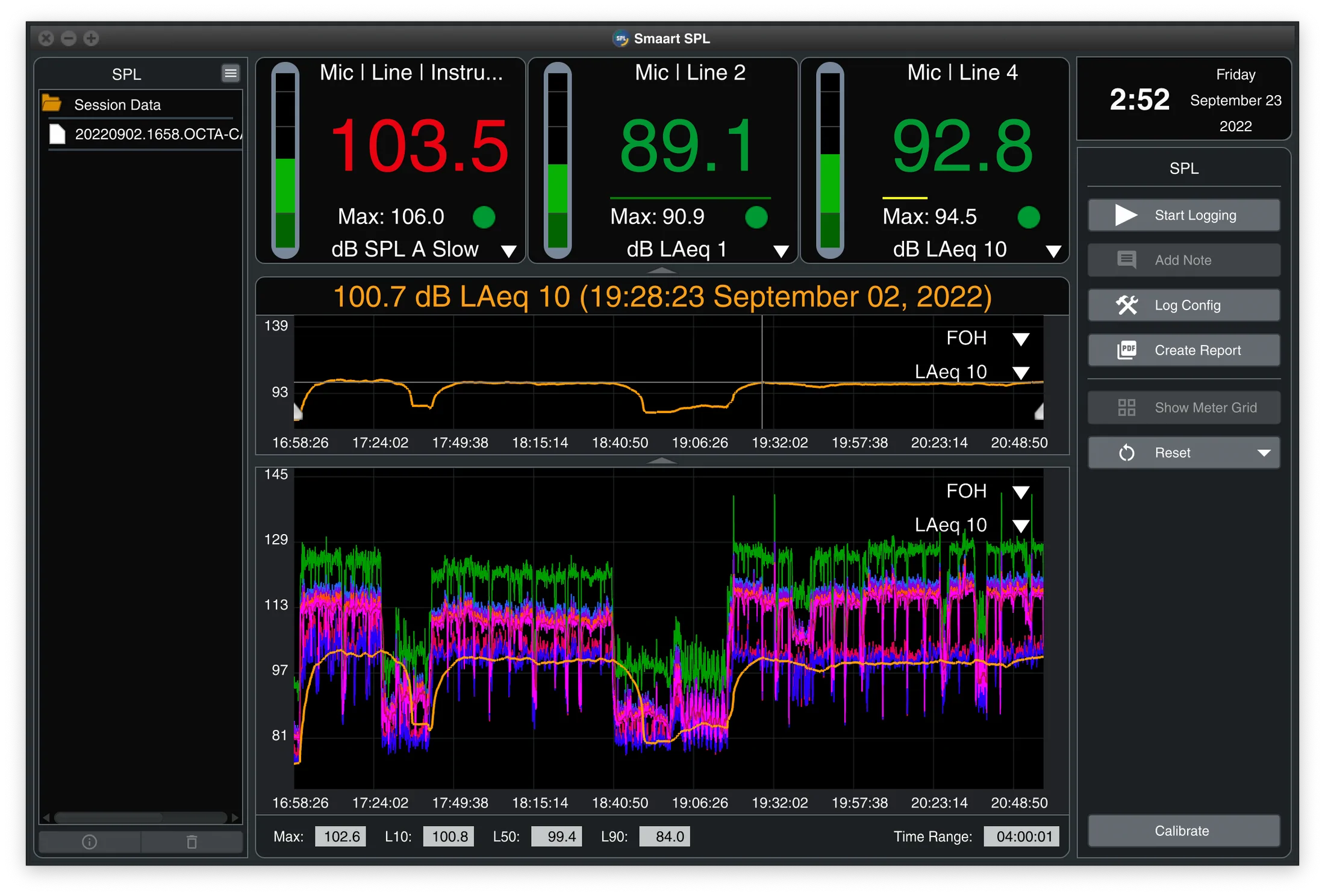

SPL History graph for navigating SPL Log files

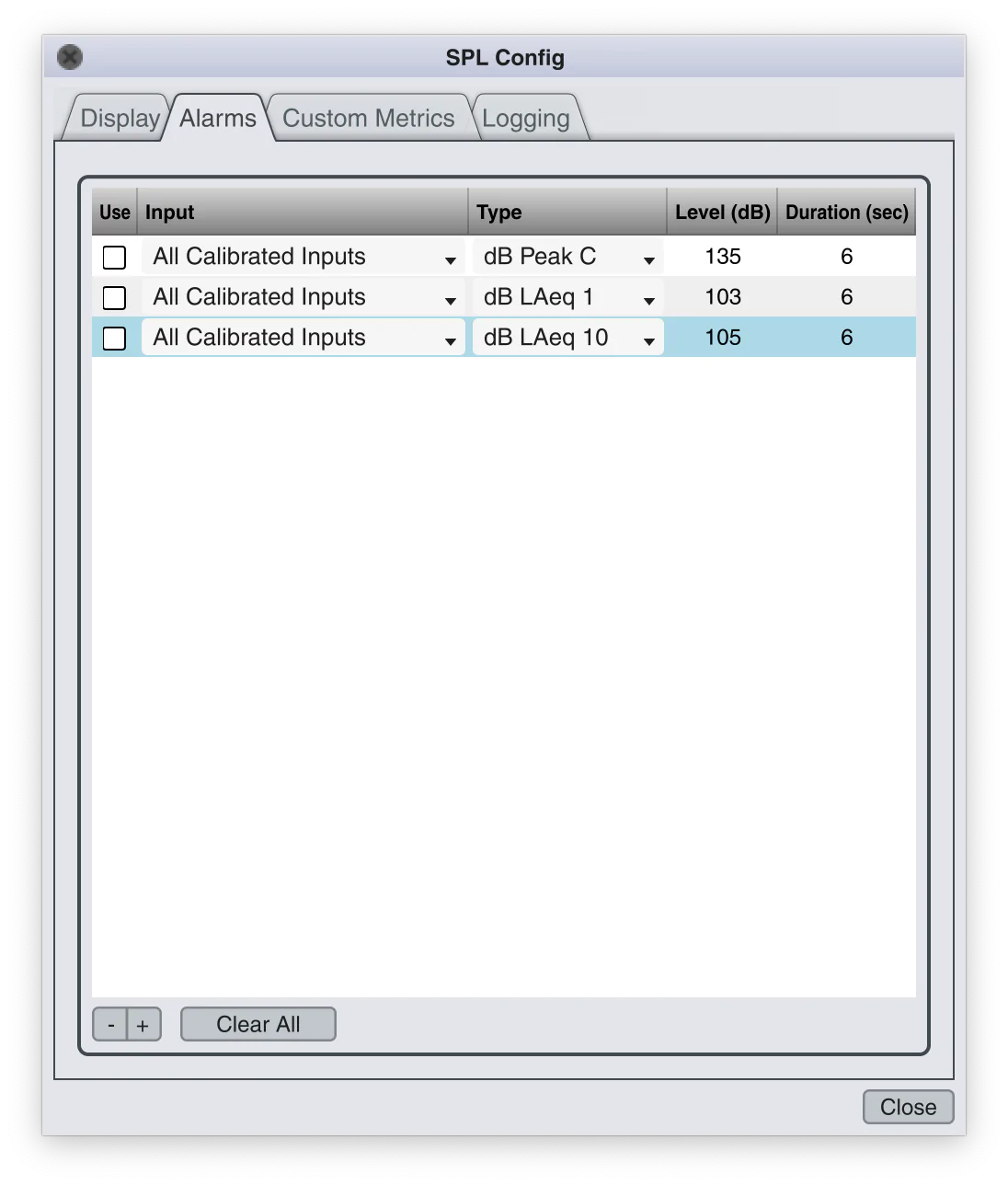

User definable SPL Alarms and ‘traffic light’ color display (green, yellow, red level definitions per SPL metric)
Remote viewing via a web browser (over LAN or Internet)

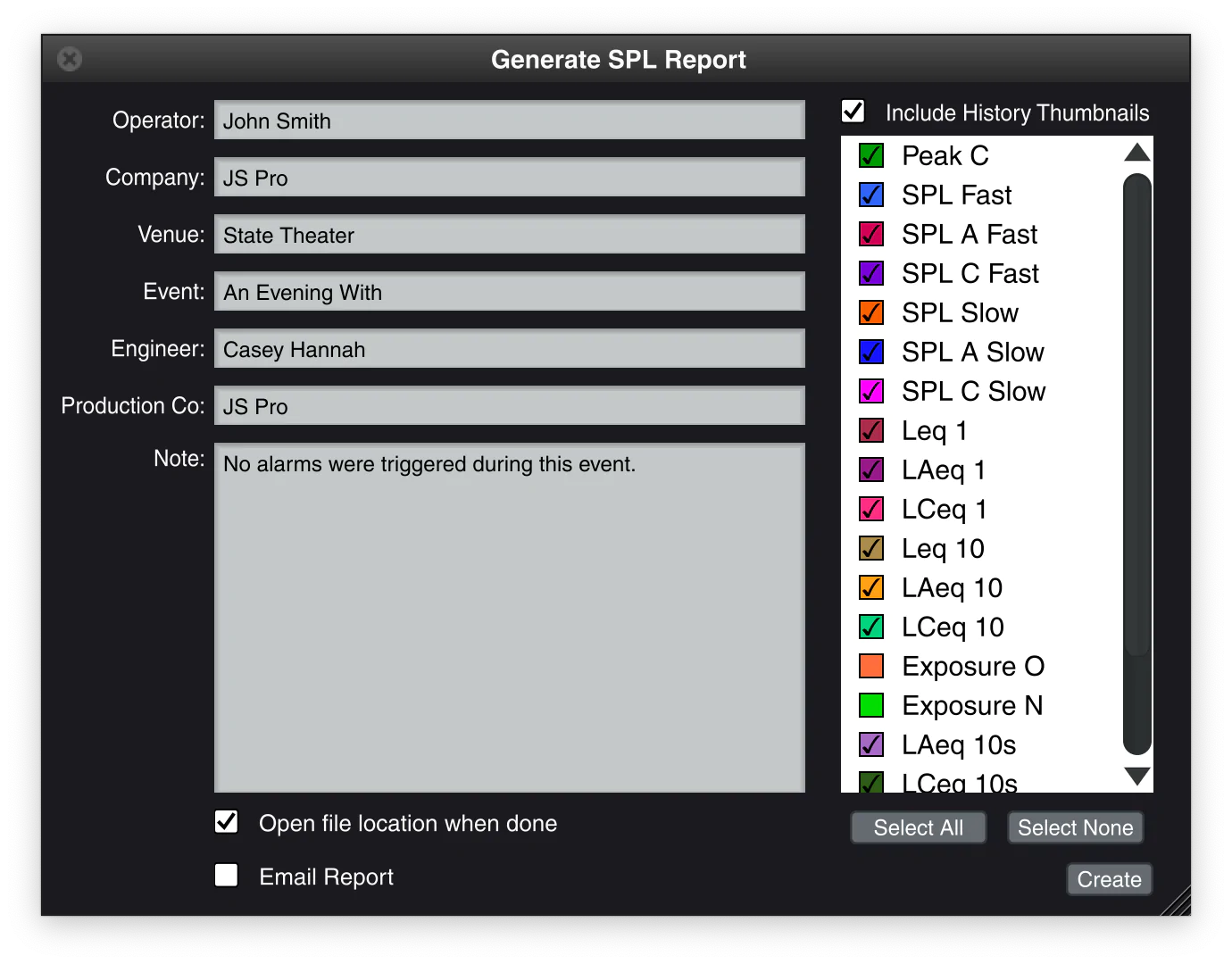

PDF report generation

Significant: For accurate SPL measurements, this product requires a microphone calibrator, a suitable acoustic test & measurement microphone, and a microphone preamp / audio interface.

Additional information

License Type	SPL New License, SPL Additional Install
