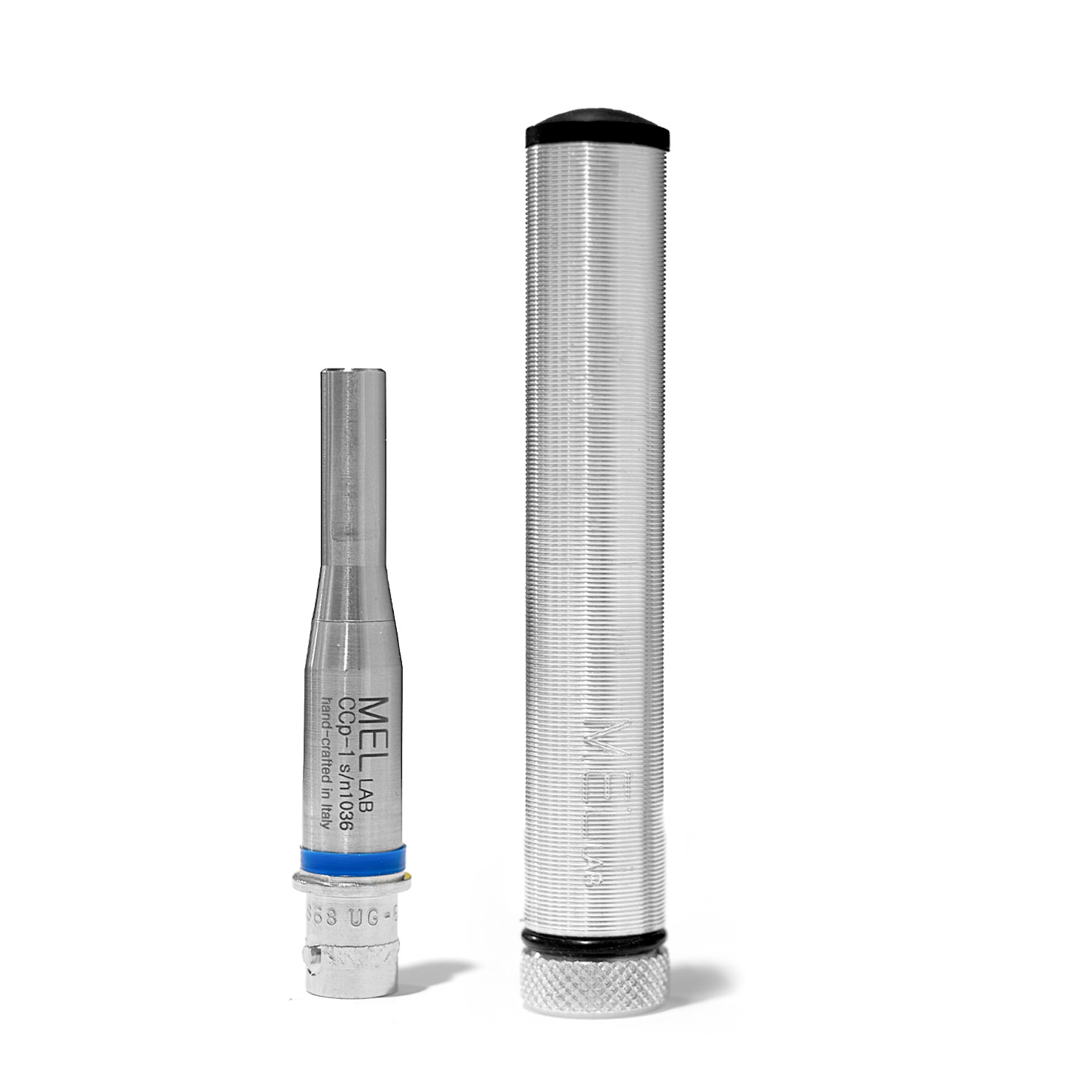

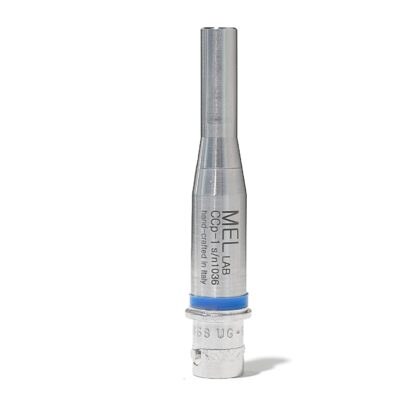

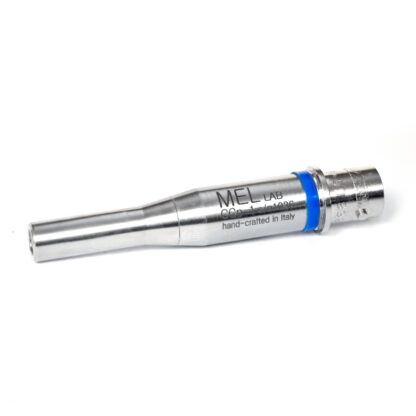

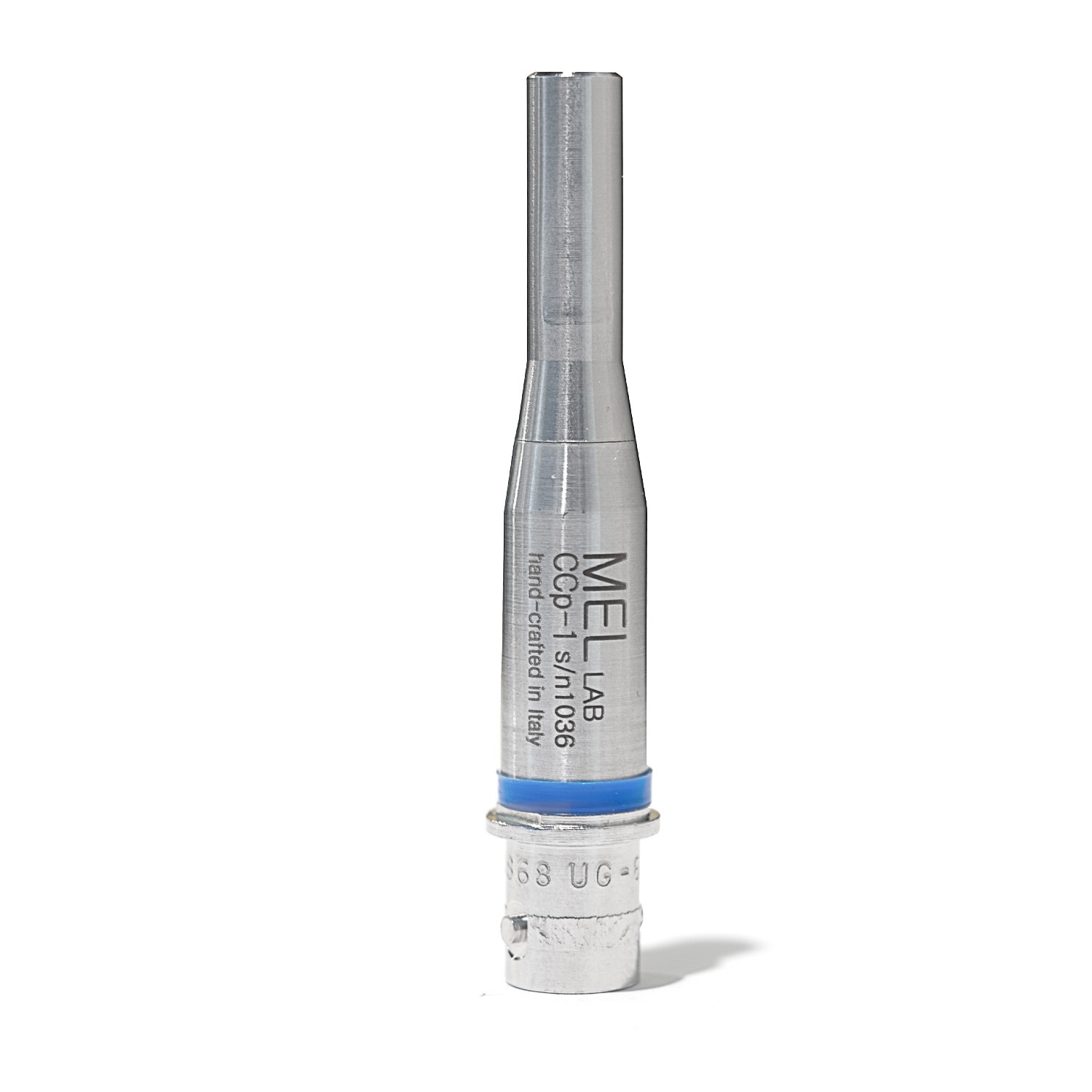

CCp-1 kit w/adapters & bag

EURO 283,00

Omni-directional constant current powered condenser microphone

Polarity: a positive pressure variation on the diaphragm produces a positive voltage at BNC central pin

Available on back-order

Description

Omni-directional constant current powered condenser microphone

Polarity: a positive pressure variation on the diaphragm produces a positive voltage at BNC central pin

  • Free field frequency response, 0°, +/- 1dB:   10-10000 Hz
  • Free field frequency response, 0°, +/- 2dB:   10-22000 Hz
  • Sensitivity (@ 250Hz; +/-2 dB)    15 mV/Pa [-36.5 dB re 1 V/Pa]
  • Max SPL (THD<3 %)    140 dB SPL
  • Noise    <23 dBA SPL equiv. (typical 22 dBA)
  • Temperature coeff.    +0.035 dB/°C
  • Operating temperature range    -10 °C to +50 °C (14 to 122 °F)
  • Balanced output impedance    40 ohm
  • Powering    4 mA / 12 Vdc (VCompl. = 24-30V)
  • Weight    17 g
  • Length    65
